Downdraft Pit

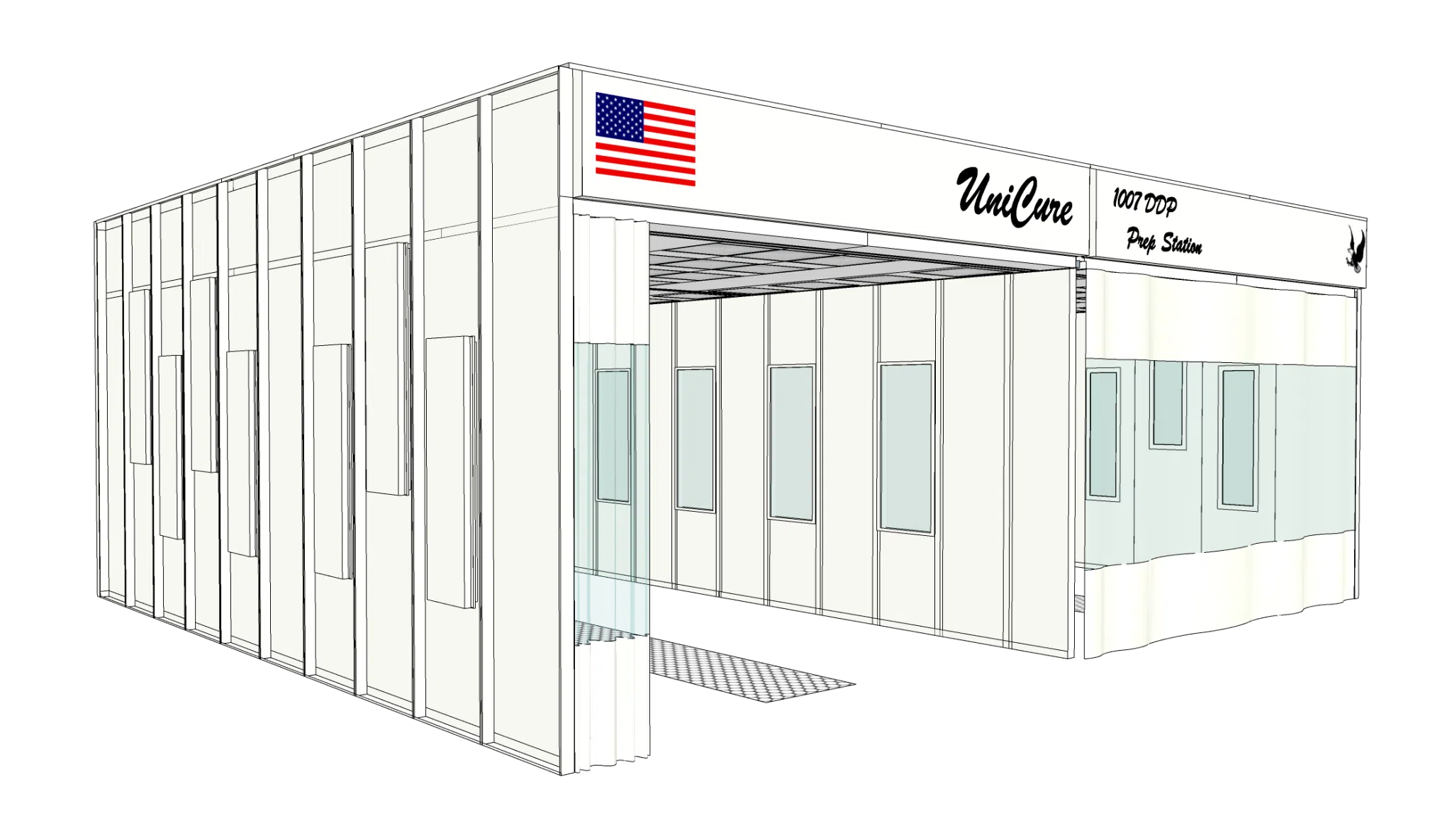

1007DDP

Powder coated white

Tek screw construction

Curtain front

Center divider wall with (8) 6-tube inside access T8 light fixtures – (4) per side

Side walls with (14) 4-tube inside access T8 light fixtures – (7) per side

(2) 30” exhaust fans with 15′ duct packages including clean out and ARV

(2) Heated air make-up systems at 1.2 MBTU and 12,000 CFM with Deluxe controls – Each

(2) Heater duct packages with intake & discharge duct

Inside dimensions:
24’ 2” x 13’ 6” x 9’ – per side

Outside dimensions:
24’ 8” x 27’ 6″ x 11’


UNI1224U1

Galvanized

Tek screw construction

Plenum to be suspended

Swing down filter racks

(6) 4-tube inside access T8 light fixtures

(1) 30” exhaust fan with 15′ duct package including clean out and ARV

Heated air make-up system at 1.0 MBTU and 10,000 CFM with Deluxe controls

Heater duct package with intake & discharge duct

Download PDF

Working dimensions:
12’ W x 24’ L


UNI2424U1

Galvanized

Tek screw construction

Plenum to be suspended

Swing down filter racks

(12) 4-tube inside access T8 light fixtures

(1) 34” exhaust fan with 15′ duct package including clean out and ARV

Heated air make-up system at 1.5 MBTU and 14,000 CFM with Deluxe controls

Heater duct package with intake & discharge duct

Working dimensions:
24’ W x 24’ L


UNI2424U2

Galvanized

Tek screw construction

Plenum to be suspended

Swing down filter racks

(12) 4-tube inside access T8 light fixtures

(1) 42” exhaust fan with 15′ duct package including clean out and ARV

Heated air make-up system at 2.7 MBTU and 25,000 CFM with Deluxe controls

Heater duct package with intake & discharge duct

Working dimensions:
24’ W x 24’ L
