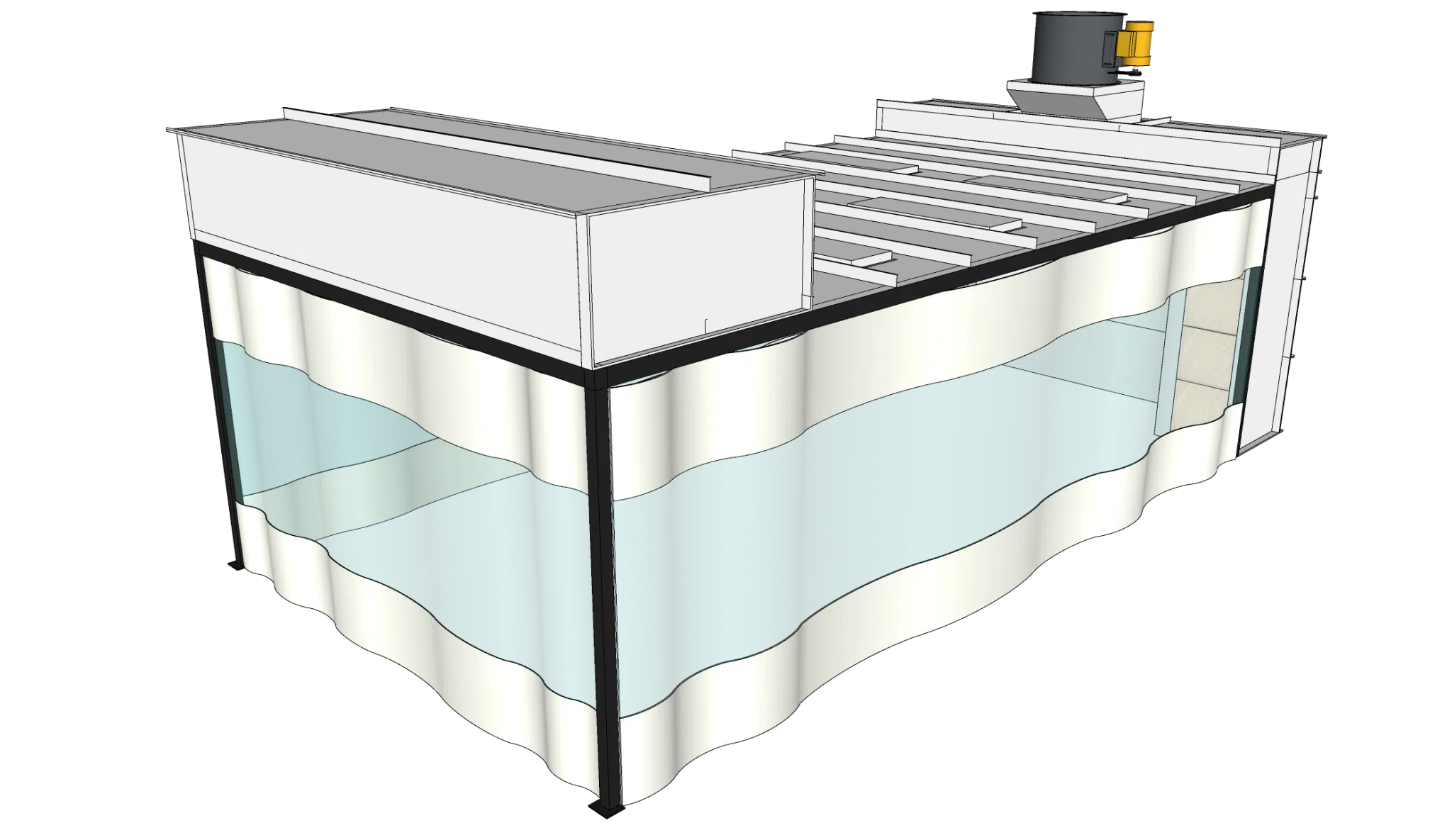

Semi-Downdraft


1004P

Galvanized

Tek screw construction

Solid back with crossover exhaust plenum

3 sided curtain kit – white/clear/white

(6) 4-tube inside access T8 light fixtures

(1) 30” exhaust fan with 9′ duct package including clean out and ARV

Heated air make-up system at 1.2 MBTU and 12,000 CFM with Deluxe controls

Heater duct package with intake and discharge duct

Download PDF

Inside dimensions:
24’ 2” x 14’ x 8’

Outside dimensions:
26’ 10” x 14’ x 10’ 8”


UNI812

Base dimensions: 8′ wide x 3′ deep x 8′ high

Return dimensions 12′ wide x 30″ deep x 30″ high

Manual damper for recirculating (not for use if painting)

Swing down return filter racks

Tek screw construction

Galvanized

(1) 30” exhaust fan with 9′ duct package including clean and ARV

2HP/3PH explosion-proof motor with adjustable pulley

*Shown with optional lights / Ask about full ceiling*

Download PDF

Working dimensions:
21’ 6” x 12’ x 9’

Overall dimensions:
24′ 8″ x 12′ 4″ x 11′ 8″


UNI1015

Base dimensions: 10′ wide x 3′ deep x 8′ high

Return dimensions 15′ wide x 30″ deep x 30″ high

Manual damper for recirculating (not for use if painting)

Swing down return filter racks

Tek screw construction

Galvanized

(1) 30” exhaust fan with 9′ duct package including clean and ARV

3HP/3PH explosion-proof motor with adjustable pulley

*Shown with optional lights / Ask about full ceiling*

Download PDF

Working dimensions:
24’ 6” x 15’ x 9’

Overall dimensions:
27′ 8″ x 15′ 4″ x 11′ 8″


UNI1520

Base dimensions: 15′ wide x 4′ deep x 8′ high

Return dimensions 20′ wide x 4′ deep x 4′ high

Manual damper for recirculating (not for use if painting)

Swing down return filter racks

Tek screw construction

Galvanized

(1) 34” exhaust fan with 9′ duct package including clean and ARV

5HP/3PH explosion-proof motor with adjustable pulley

*Shown with optional lights / Ask about full ceiling*

Download PDF

Working dimensions:
24’ 6” x 20’ x 9’

Overall dimensions:
27′ 8″ x 20′ 4″ x 11′ 8″


UE2489SDP

Galvanized

Tek screw construction

Solid back with crossover exhaust plenum

3 sided curtain kit – white/clear/white

(6) 4-tube inside access T8 light fixtures

(1) 30” Exhaust fan – 10,000 CFM

(1) 30″ x 9′ duct package including clean out and ARV

(1) 30″ intake fan – 10,000 CFM

(1) 30″ intake duct package

Download PDF

Inside dimensions:
24’ 2” x 14’ x 8’

Outside dimensions:
26’ 10” x 14’ x 10’ 8”

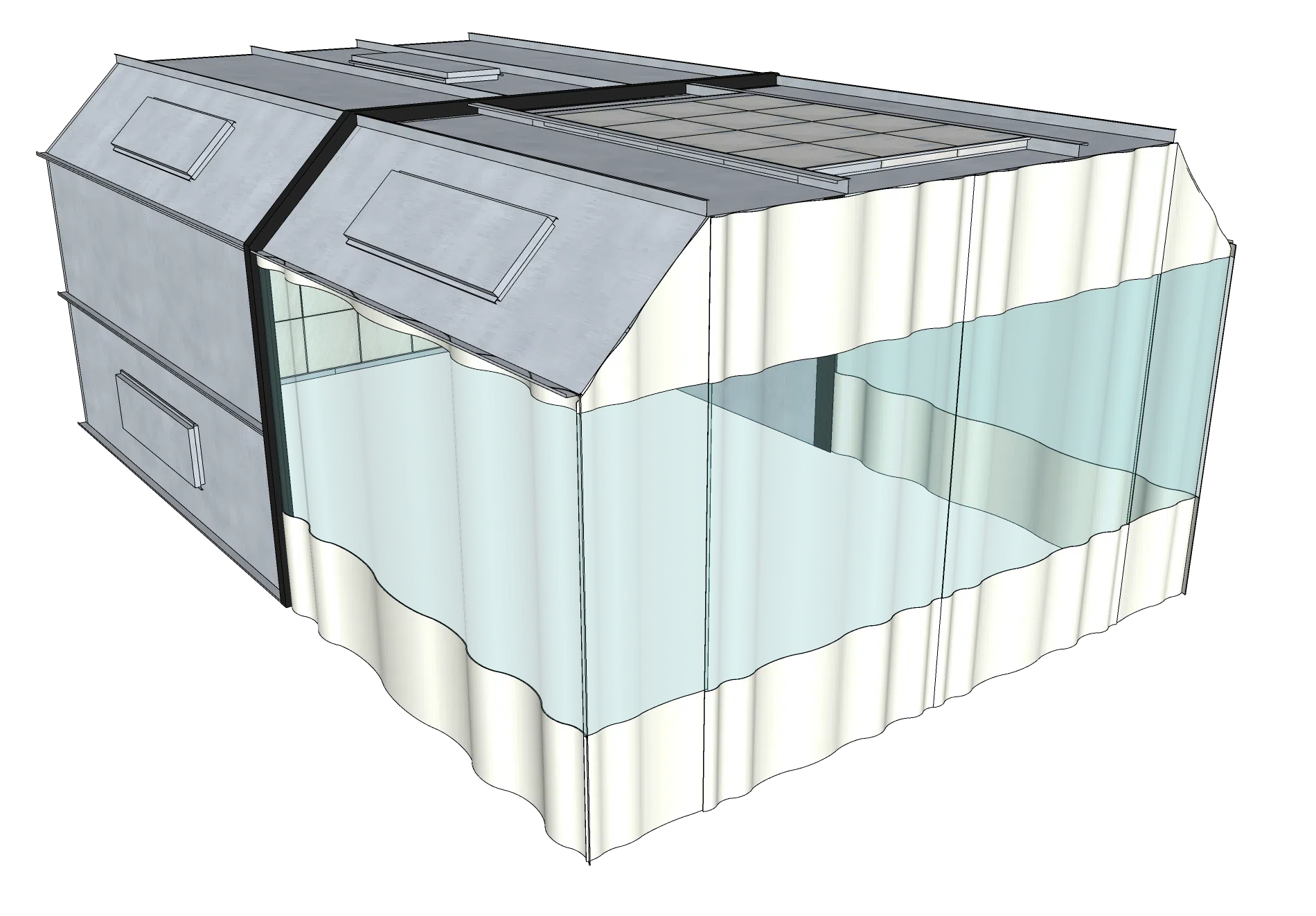

ES100PREP

Galvanized

Nut & bolt / Tek screw construction

14’ side walls with 10’ side curtains at front for 24’ total length

Front curtain

(7) 4-tube T8 light fixtures

(1) 30” exhaust fan – 10,000 CFM

(1) 30″ x 9′ duct package including clean out and ARV

Download PDF

Inside dimensions:
24’ x 14’ x 9’

Outside dimensions:
27’ x 14′ 5″ x 9’ 3”


ES300SDP

Galvanized

Nut & bolt / Tek screw construction

(2) Front sets of solid product doors without windows

(2) Personnel doors with windows

Center divider curtain – 22’ x 7’

(24) 4-tube T8 light fixtures

(2) 30” exhaust fans with 9′ duct packages including clean out and ARV

(2) Heated air make-up systems at 1.0 MBTU and 10,000 CFM with Deluxe controls

(2) Heater duct package with intake and discharge duct

*Shown with optional crossover exhaust plenum, tri-fold doors, and windows*

Download PDF

Inside dimensions:
26’ x 14’ x 9’ – per side

Outside dimensions:
26’ 5″ x 28’ 5″ x 11’
