Downdraft Side-Exhaust


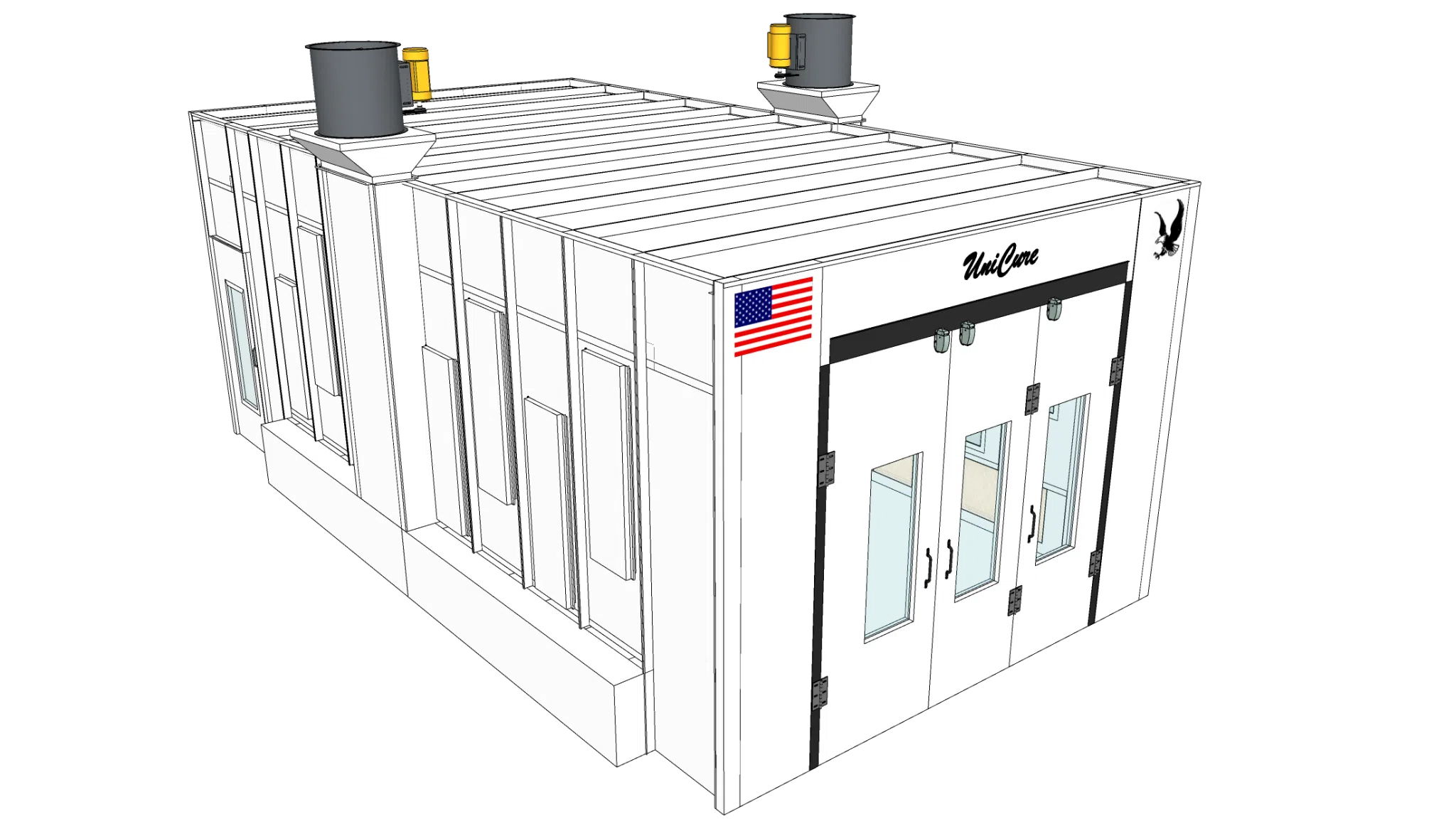

1006

Powder coated white

Tek screw construction

Tri-fold product doors with (3) windows

Personnel door with window

(16) 4-tube inside access T8 light fixtures

(2) 24” Exhaust fans with 9′ duct packages including clean out and ARV

Heated air make-up system at 1.5 MBTU and 14,000 CFM with Deluxe controls

Heater duct package with intake and discharge duct

Download PDF

Inside dimensions:
26′ 7″ x 14′ x 9′

Outside dimensions:
27’ 1” x 16’ 6” x 11’


1006XL

Powder coated white

Tek screw construction

Tri-fold product doors with (3) windows

Personnel door with window

Dual parts doors with (2) windows

Divider curtain at 24’/12’

(20) 4-tube inside access T8 light fixtures

(4) 24” exhaust fans with 9′ duct packages including clean out and ARV

Heated air make-up system at 2.1 MBTU and 20,000 CFM with waterborne controls

XL control panel upgrade – vehicle end/parts end/both ends

Heater duct package with intake and discharge duct

Download PDF

Inside dimensions:
36’ 3” x 14’ x 9’

Outside dimensions:
36’ 9” x 16’ 6” x 11’


3006

3″ double wall insulated panels

Powder coated white

Tri-fold product doors with (3) windows

Personnel door with window

(14) LED light fixtures

(2) 24” exhaust fans with 9′ duct packages including clean out and ARV

Heated air make-up system at 1.5 MBTU and 14,000 CFM with Deluxe controls

Heater duct package with intake and discharge duct

Download PDF

Inside dimensions:
26’ 7” x 14’ x 9’

Outside dimensions:
27’ 1” x 16’ 6” x 11’


3006XL

3″ double wall insulated panels

Powder coated white

Tri-fold product doors with (3) windows

Personnel door with window

Dual parts doors with (2) windows

Divider curtain at 24’/12’

(18) LED light fixtures

(4) 24” exhaust fans with 9′ duct packages including clean out and ARV

Heated air make-up system at 2.1 MBTU and 20,000 CFM with waterborne controls

XL control panel upgrade – vehicle end/parts end/both ends

Heater duct package with intake and discharge duct

Download PDF

Inside dimensions:
36’ 3” x 14’ x 9’

Outside dimensions:
36’ 9” x 16’ 6” x 11’


UE2489Z6

Galvanized

Tek screw construction

Tri-fold product doors with (3) windows

Personnel door with window

(16) 4-tube inside access T8 light fixtures

(2) 24” Exhaust fans – 14,000 CFM

(2) 24″ x 9′ duct packages including clean out and ARV

Inside dimensions:
26’ 7” x 14’ x 9’

Outside dimensions:
27’ 1” x 16’ 6” x 11’


ES100DSE

No upper plenum

Galvanized

Nut & Bolt / Tek screw construction

Solid product doors without windows

Personnel door with window

(12) 4-tube T8 light fixtures

(2) 24″ Exhaust fans – 12,000 CFM

(2) 24” x 12′ duct packages including clean out and ARV

Inside dimensions:
26’ x 14’ x 9’

Outside dimensions:
26’ 5” x 18’ 5” x 9’ 3”

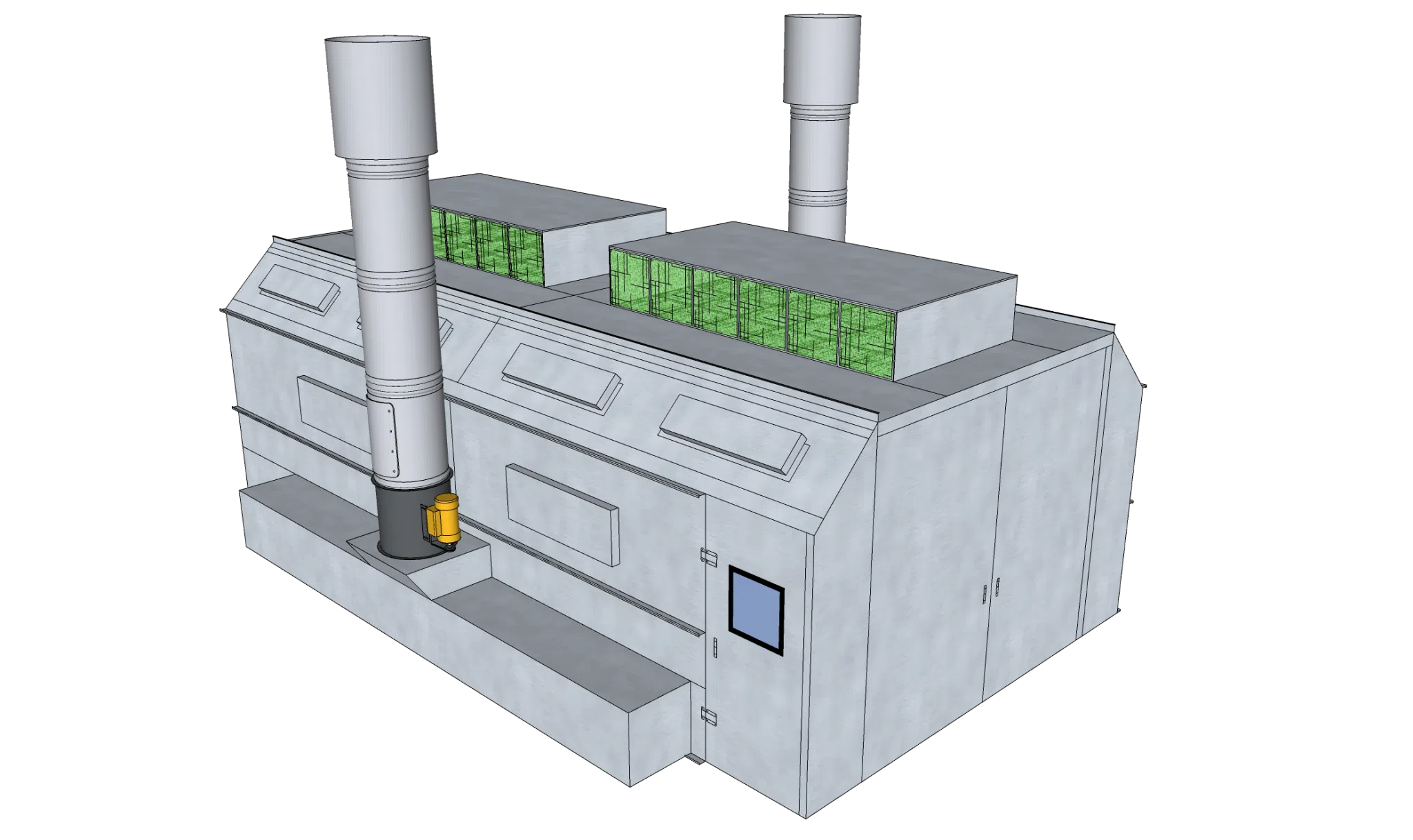

ES200DSE

Pre-filtered upper plenum

Galvanized

Nut & Bolt / Tek screw construction

Solid product doors without windows

Personnel door with window

(12) 4-tube T8 light fixtures

(2) 24″ Exhaust fans – 12,000 CFM

(2) 24” x 12′ duct packages including clean out and ARV

Download PDF

Inside dimensions:
26’ x 14’ x 9’

Outside dimensions:
26’ 5” x 18’ 5” x 11’


ES300DSE

Galvanized

Nut & Bolt / Tek screw construction

Solid product doors without windows

Personnel door with window

(12) 4-tube T8 light fixtures

(2) 24” Exhaust fans with 12′ duct packages including clean out and ARV

Heated air make-up system at 1.2 MBTU and 12,000 CFM with Deluxe controls

Heater duct package with intake and discharge duct

Download PDF

Inside dimensions:
26’ x 14’ x 9’

Outside dimensions:
26’ 5” x 18’ 5” x 11’


EV300DSE

Galvanized

Nut & Bolt / Tek screw construction

Solid product doors without windows

Personnel door with window

(18) 4-tube T8 light fixtures

(2) 30” Exhaust fans with 12′ duct packages including clean out and ARV

Heated air make-up system at 1.9 MBTU and 18,000 CFM with Deluxe controls

Heater duct package with intake and discharge duct

Inside dimensions:
30’ x 16’ x 12’

Outside dimensions:
30’ 5” x 20’ 5” x 14’
